BOOST 101

Boost control is all about regulating the pressure your turbocharger produces so your engine gets the right amount of air without overdoing it. Too little boost and you’re leaving power on the table; too much and you risk detonation, blown head gaskets, or even a snapped rod.

At the heart of boost control is the wastegate. Think of it as a pressure relief valve that opens to divert exhaust gases away from the turbo’s turbine when a set boost level is reached. This prevents the turbo from spinning faster than it should.

You’ve got different types of waste gates:

Internal wastegate – built into the turbo housing, compact and simpler.

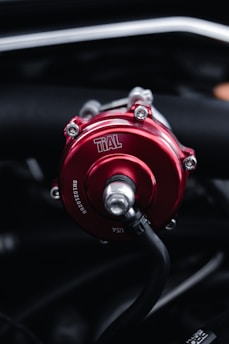

External wastegate – separate unit, more precise, often used in high-performance setups.

Manual boost controllers (MBC) – cheap, simple, but less flexible. You set a spring-loaded valve to control pressure to the wastegate actuator.

Electronic boost controllers (EBC) – use solenoids and your ECU to actively manage boost. They can change boost levels per gear, RPM range, or even throttle position.

Why does all this matter?

-Keeps the turbo in its efficiency range.

-Protects the engine from overboost damage.

-Allows tuners to fine-tune power delivery for traction and drivability

Common boost control issues

• Boost Creep – When boost pressure keeps climbing past the target because the wastegate can’t bypass enough exhaust gas.

• Boost Spike – A sudden overshoot in boost before it stabilizes, often caused by slow wastegate response or controller setup issues.

• Overboost Cut – When the ECU detects excessive boost and cuts fuel or spark to protect the engine.

Choosing the Right Boost Controller

• Street Use - An electronic boost controller offers flexibility, smoother power delivery, and multiple settings.

• Track Use - A manual controller is simple, reliable, and less prone to electronic failure — but lacks adaptability.

Wastegate Sizing & Placement Tips

• Too small → can’t vent enough exhaust, causing boost creep

• Too large → slower spool and potential over-control

• External wastegates should be mounted at an angle to exhaust flow for better response.

Tuning & Safety Considerations

• Always tune boost alongside fueling and ignition timing — extra boost without the right air/fuel ratio can cause detonation.

• Monitor with a wideband O₂ sensor and a boost gauge.

• Set boost cut limits in the ECU for safety.
